Overview

In this lab, we’ll implement foundational Layer 2 security mechanisms on a Cisco Catalyst 3560X switch. These features protect against common attack vectors like ARP spoofing, rogue DHCP servers, and IP address impersonation. This lab also incorporates inter-VLAN routing using our 3560x (Requires GNS3).

Security Mechanisms Covered:

• DHCP Snooping
• Dynamic ARP Inspection (DAI)
• IP Source Guard (IPSG)

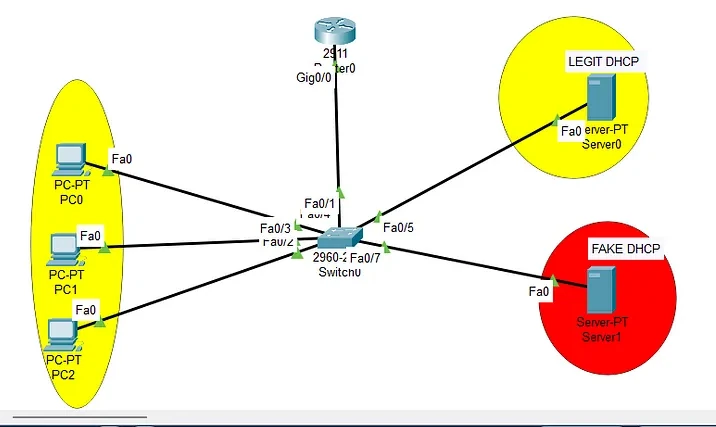

Lab Topology (GNS3 / Packet Tracer)

VLAN Assignments:

• VLAN 10: Workstations
• VLAN 20: Admin PCs
• VLAN 99: Management (optional)

Objective

1. Set up inter-VLAN routing via SVIs on the switch.
2. Enforce Layer 2 security on the switch.
3. Simulate DHCP attacks and demonstrate feature effectiveness.

Part 1: VLAN and Routing Configuration

On the Switch (3560X):

Switch(config)# ip routing

Switch(config)# vlan 10
Switch(config-vlan)# name USERS
Switch(config-vlan)# exit

Switch(config)# vlan 20
Switch(config-vlan)# name ADMIN
Switch(config-vlan)# exit

Switch(config)# interface range fa0/2 - 4
Switch(config-if-range)# switchport access vlan 10
Switch(config-if-range)# switchport mode access
Switch(config-if-range)# exit

Switch(config)# interface fa0/6
Switch(config-if)# switchport access vlan 20
Switch(config-if)# switchport mode access
Switch(config-if)# exit

Switch(config)# interface fa0/5
Switch(config-if)# switchport access vlan 10
Switch(config-if)# switchport mode access
Switch(config-if)# exit

Switch(config)# interface fa0/7
Switch(config-if)# switchport access vlan 10
Switch(config-if)# switchport mode access
Switch(config-if)# exit

Create SVIs for Routing:

Switch(config)# interface vlan 10
Switch(config-if)# ip address 192.168.10.1 255.255.255.0
Switch(config-if)# no shutdown
Switch(config-if)# exit

Switch(config)# interface vlan 20
Switch(config-if)# ip address 192.168.20.1 255.255.255.0
Switch(config-if)# no shutdown
Switch(config-if)# exit

Ensure the switch has a default route if needed: Switch(config)# ip route 0.0.0.0 0.0.0.0 <gateway-if-necessary>

Part 2: DHCP Snooping Configuration

Enable Globally and for VLANs:

Switch(config)# ip dhcp snooping
Switch(config)# ip dhcp snooping vlan 10,20

Trust Legitimate DHCP Server Port:

Switch(config)# interface fa0/5
Switch(config-if)# ip dhcp snooping trust
Switch(config-if)# exit

Verification:

Switch# show ip dhcp snooping
Switch# show ip dhcp snooping binding

Part 3: Dynamic ARP Inspection (DAI)

Enable DAI for VLANs:

Switch(config)# ip arp inspection vlan 10,20

Trust DHCP Server Port:

Switch(config)# interface fa0/5
Switch(config-if)# ip arp inspection trust
Switch(config-if)# exit

Verification:

Switch# show ip arp inspection interfaces
Switch# show ip arp inspection vlan 10
Switch# show ip arp inspection vlan 20

Part 4: IP Source Guard (IPSG)

Apply to Access Ports:

Switch(config)# interface range fa0/2 - 4, fa0/6
Switch(config-if-range)# ip verify source
Switch(config-if-range)# exit

Verification: Switch# show ip verify source

Part 5: Testing the Configuration

1. Connect Legit PC (e.g., PC0 on Fa0/2)

   • Should receive IP from Legit DHCP (Fa0/5)
   • Verify using ipconfig or ip addr on PC

2. Connect Rogue DHCP Server (Fa0/7)

   • Should be blocked by DHCP Snooping
   • Run packet capture or check show ip dhcp snooping binding

3. Try ARP Spoofing from PC1 (Fa0/3)

   • Should be blocked by DAI

4. Spoof IP on PC2 (Fa0/4)

   • Manually assign a mismatched IP
   • Should be blocked by IP Source Guard

Summary of Interface Roles

Conclusion

By combining DHCP Snooping, Dynamic ARP Inspection, and IP Source Guard, we create a layered security posture against the most common Layer 2 threats (defense in depth!):

• Rogue DHCP servers are suppressed
• Malicious ARP replies are filtered
• IP/MAC spoofing attempts are blocked at the port level

SVI-based routing makes this topology realistic for enterprise L3 switch deployments, where inter-VLAN routing is handled locally without a router-on-a-stick setup.

Next Steps

Future labs may explore:

• 802.1X with RADIUS integration
• Sticky MAC with Port Security
• Automating switch hardening via EEM or Ansible

Thank you for reading, and may your networks stay secure.

— Damon Hoody
